Job

Job Management #

Job Overview #

Job will create 1-N PODs,which will run according to the running rules until the end of the run.

Check Job List #

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

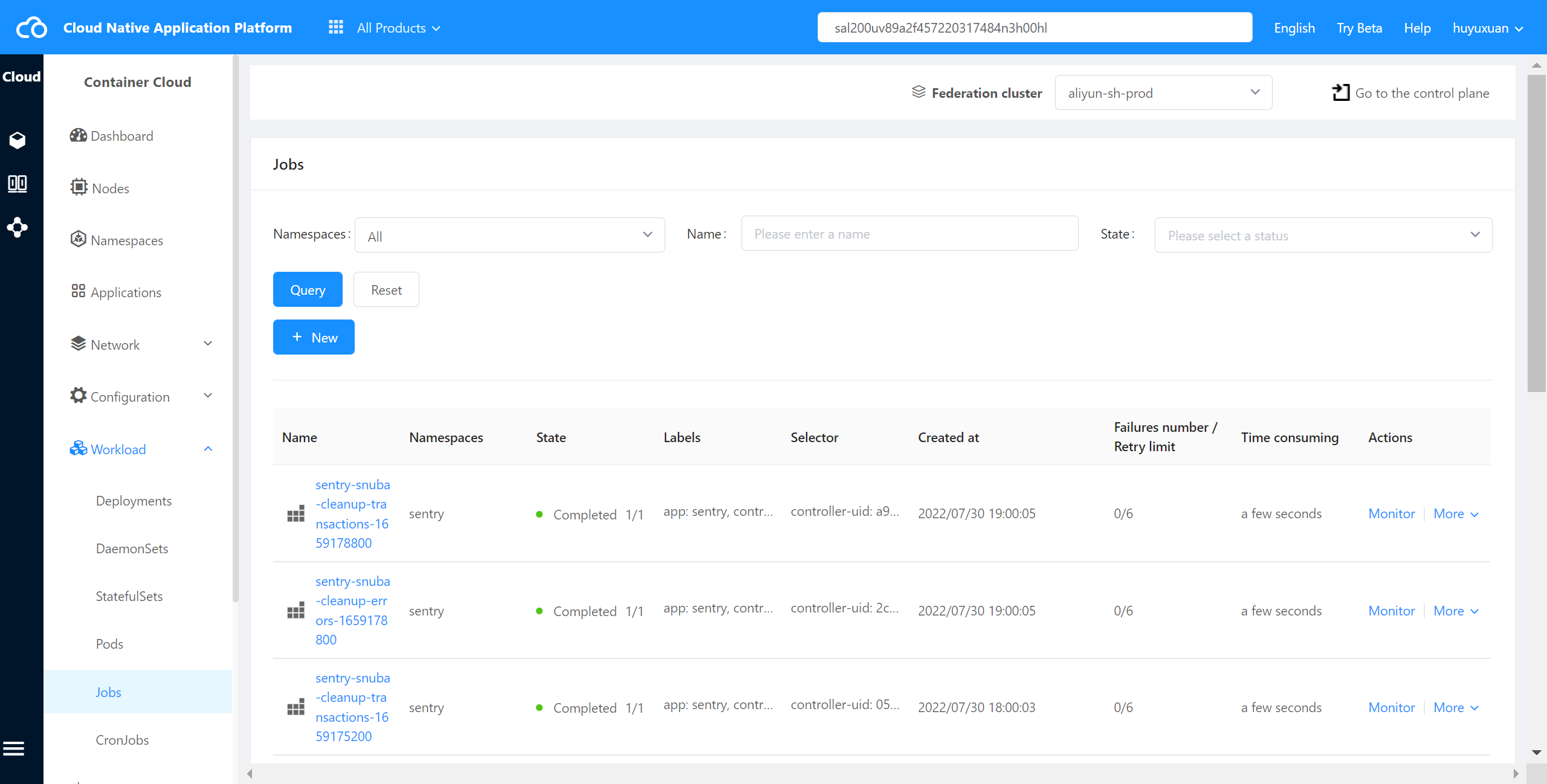

  3. Click “Job” to enter the Job list page,as shown in the following figure:

image_20220730191919_job

Check Job Monitor #

The container cloud platform supports viewing the monitoring of jobs in the cluster,including cpu usage, memory usage, network outflow rate and network inflow rate.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

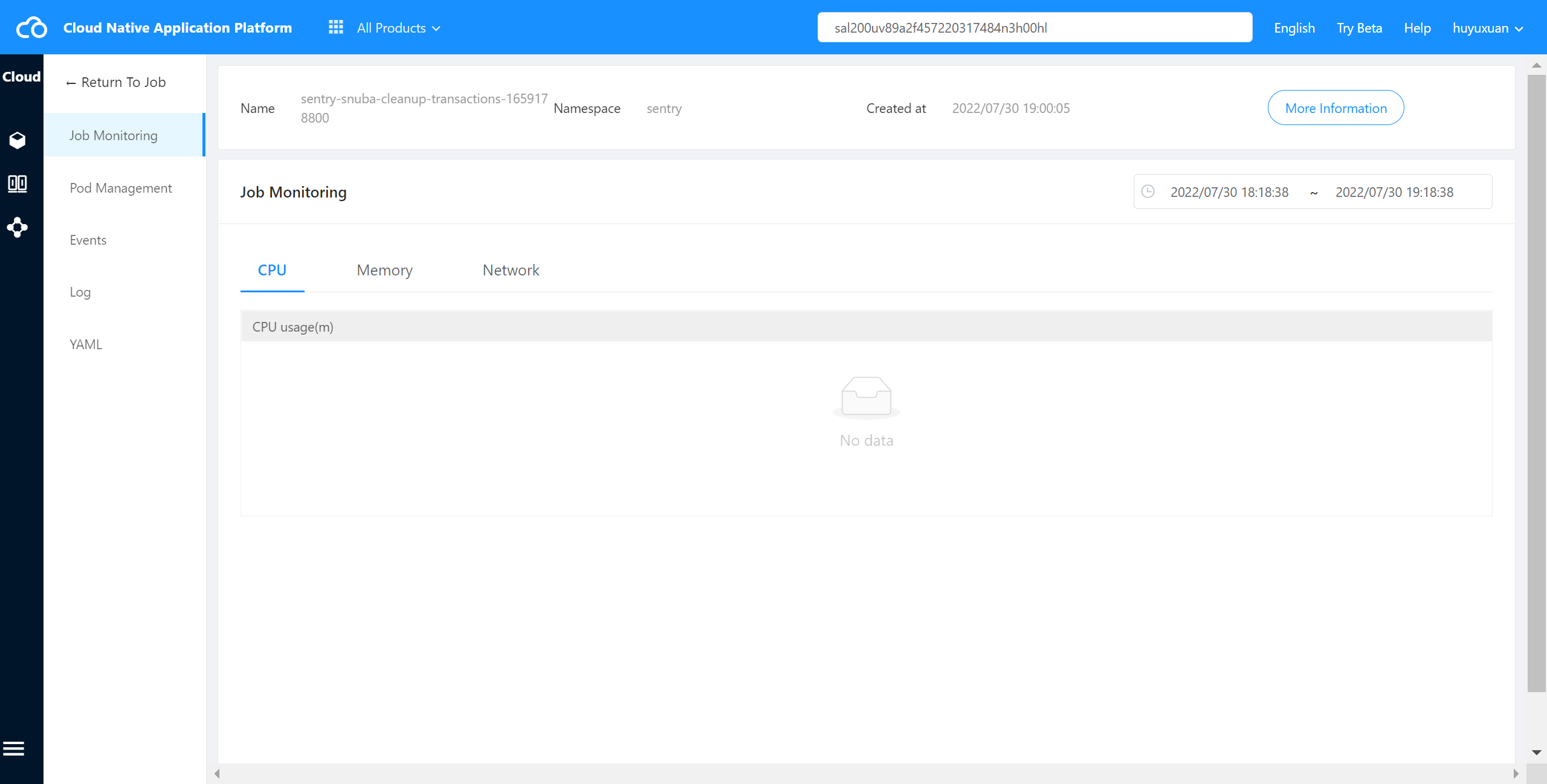

  3. Click “Job” to enter the Job list page,select the desired Job and click Monitor to enter the monitoring page,as shown in the following figure:

image_20220730191931_job

Check Job Event #

The container cloud platform supports viewing the events of jobs in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

  3. Click select “Job"and enter Job list page,select the desired Job,click Name to go to the pod management page.

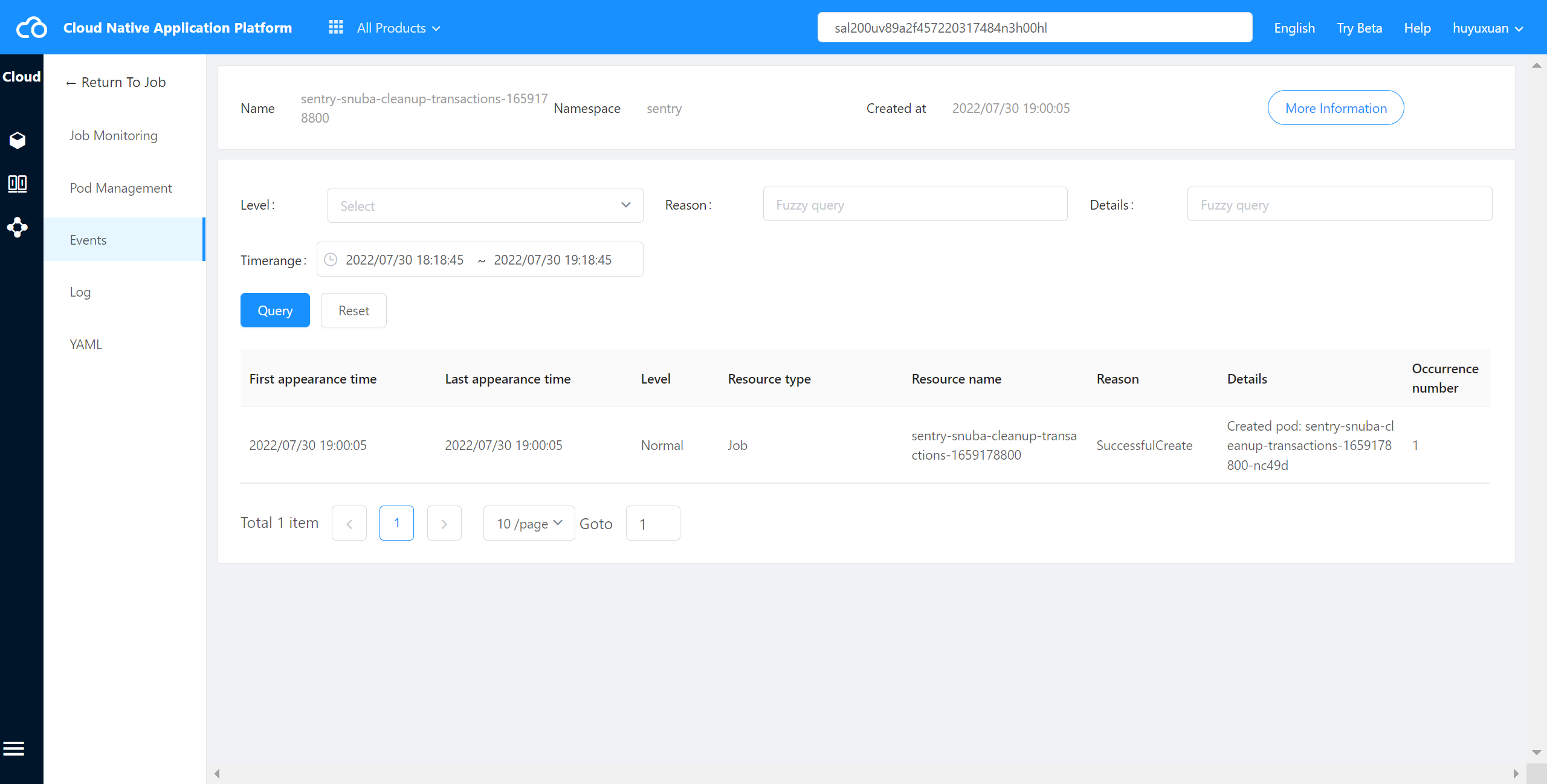

  4. On the Pod management page,click “events” in the left navigation to enter the event page,as shown in the following figure:

image_20220730191938_job

Check Job YAML #

The container cloud platform supports viewing YAML files of Job in cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

  3. Click select “Job"and enter Job list page,select the desired Job,click Name to go to the pod management page.

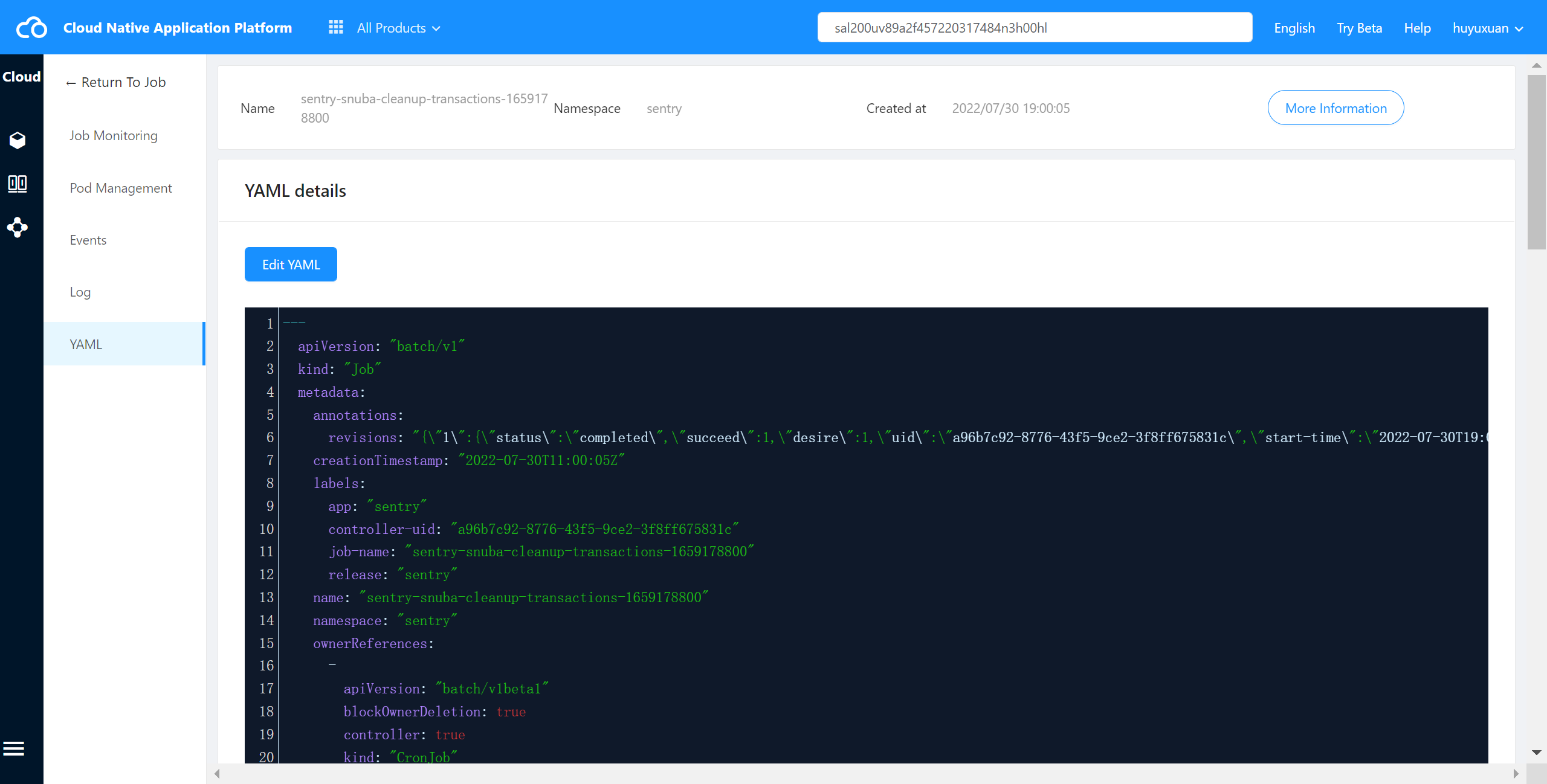

  4. On the Pod management page,click YAML on the left navigation to enter YAML page,as shown in the following figure:

image_20220730191949_job

Delete Job #

The container cloud platform supports deleting jobs in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

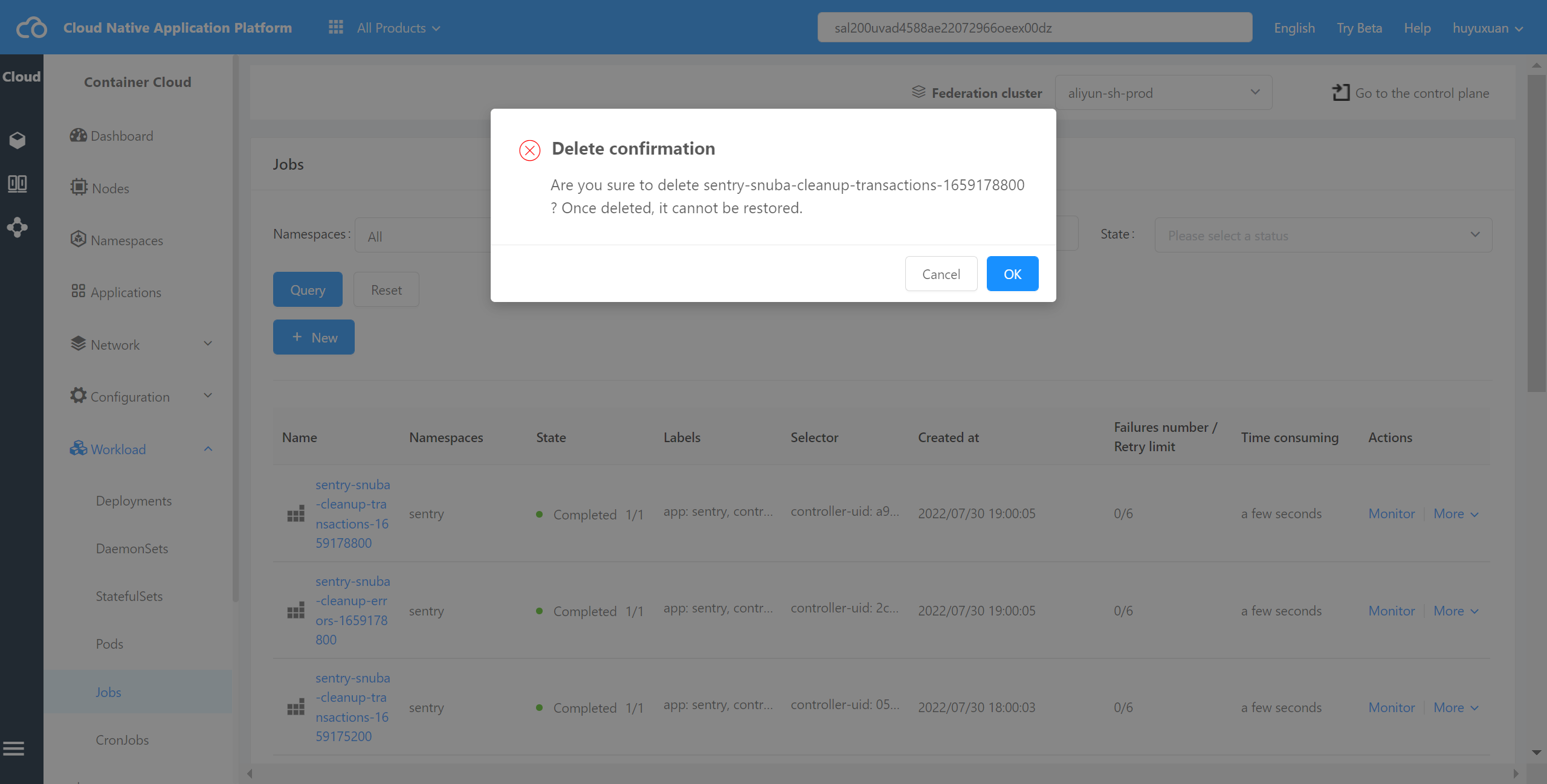

  3. Click select “Job"and enter Job list page,select the desired Job,click Delete,as shown in the following figure:

image_20220730191954_job
