CronJob

CronJob Management #

CronJob Overview #

CronJob is used to create periodic and repetitive tasks.

Check CronJob List #

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

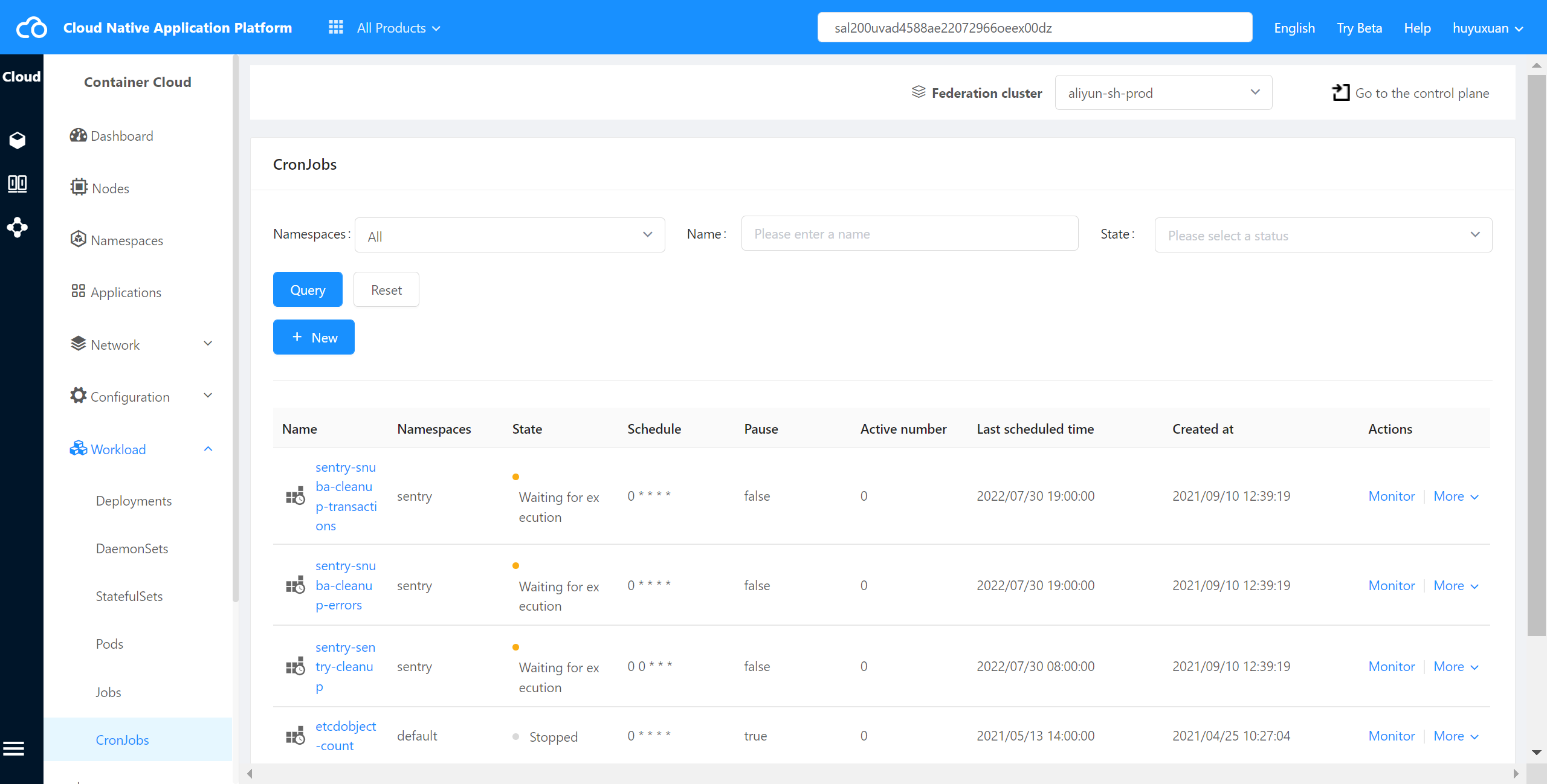

  3. Click “JCronob” to enter the CronJob list page,as shown in the following figure:

image_20220730192155_cronjob

Check CronJob Monitor #

The container cloud platform supports viewing the monitoring of CronJob in the cluster,including cpu usage, memory usage, network outflow rate and network inflow rate.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

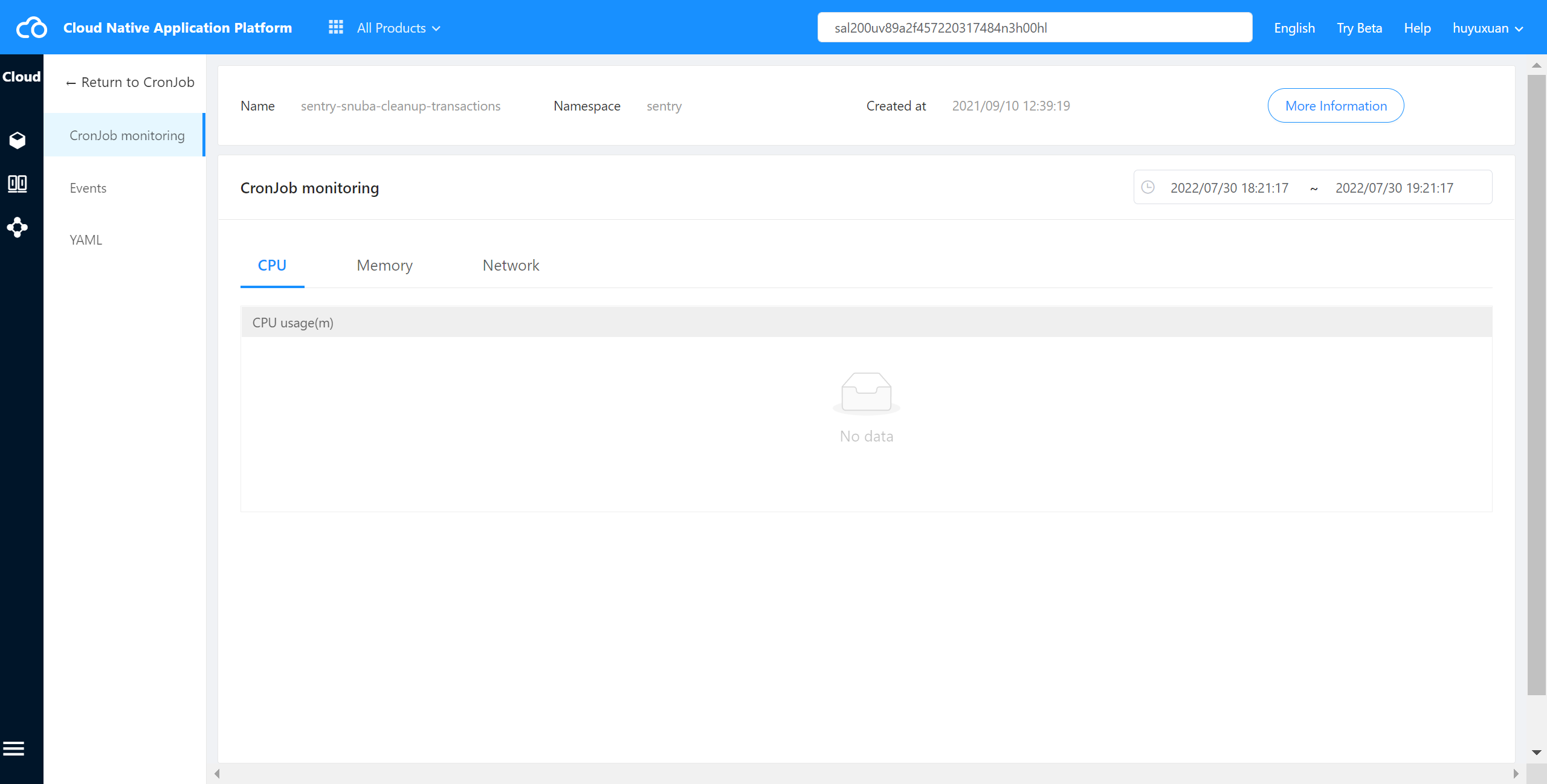

  3. Click “CronJob” to enter the CronJob list page,select the desired CronJob and click Monitor to enter the monitoring page,as shown in the following figure:

image_20220730192215_cronjob

Check CronJob Event #

The container cloud platform supports viewing the events of CronJob in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

  3. Click select “CronJob"and enter CronJob list page,select the desired CronJob,click Name to go to the pod management page.

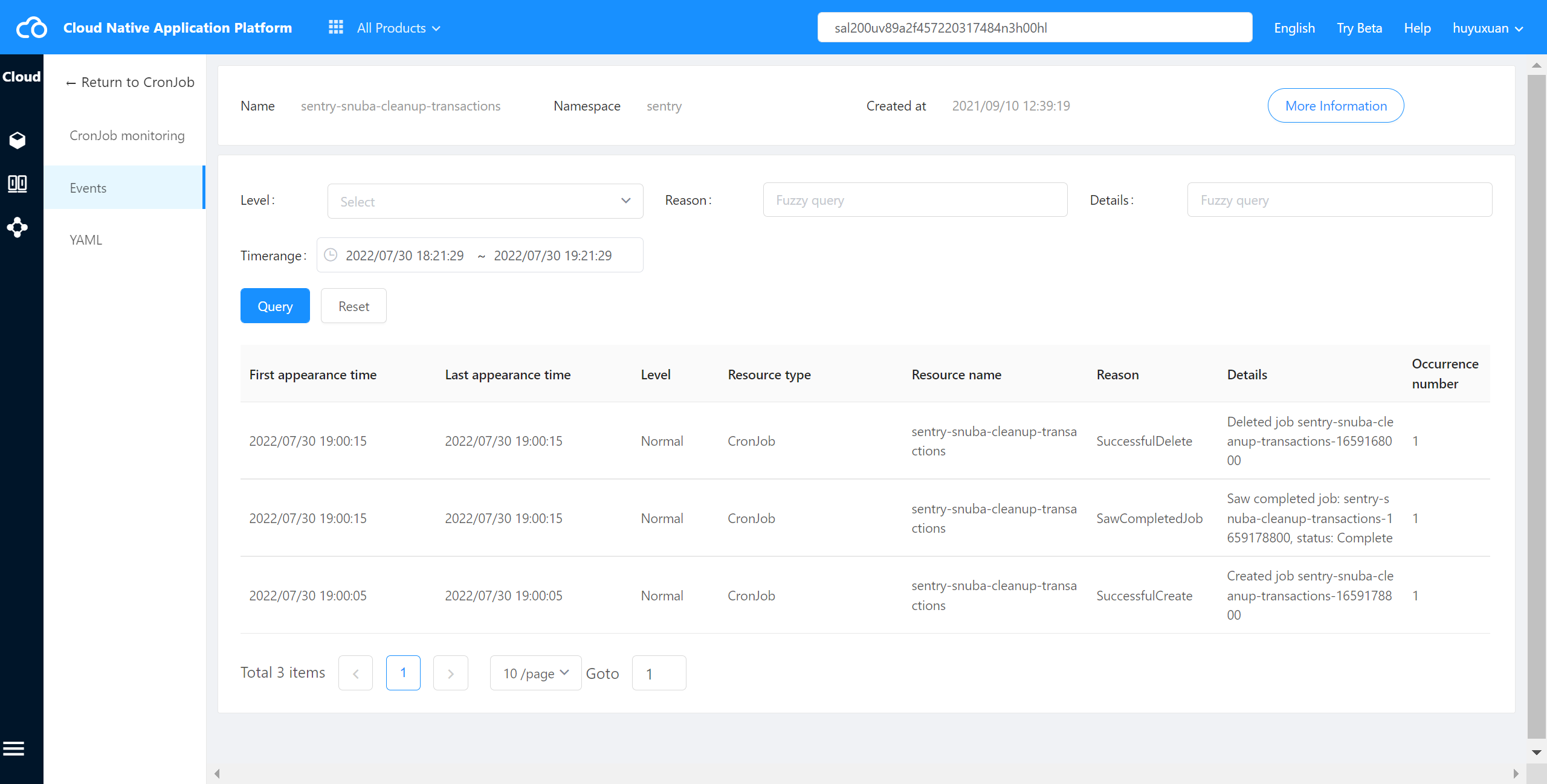

  4. On the Pod management page,click “events” in the left navigation to enter the event page,as shown in the following figure:

image_20220730192221_cronjob

Check CronJob YAML #

The container cloud platform supports viewing YAML files of CronJob in cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

  3. Click select “CronJob"and enter CronJob list page,select the desired CronJob,click Name to go to the pod management page.

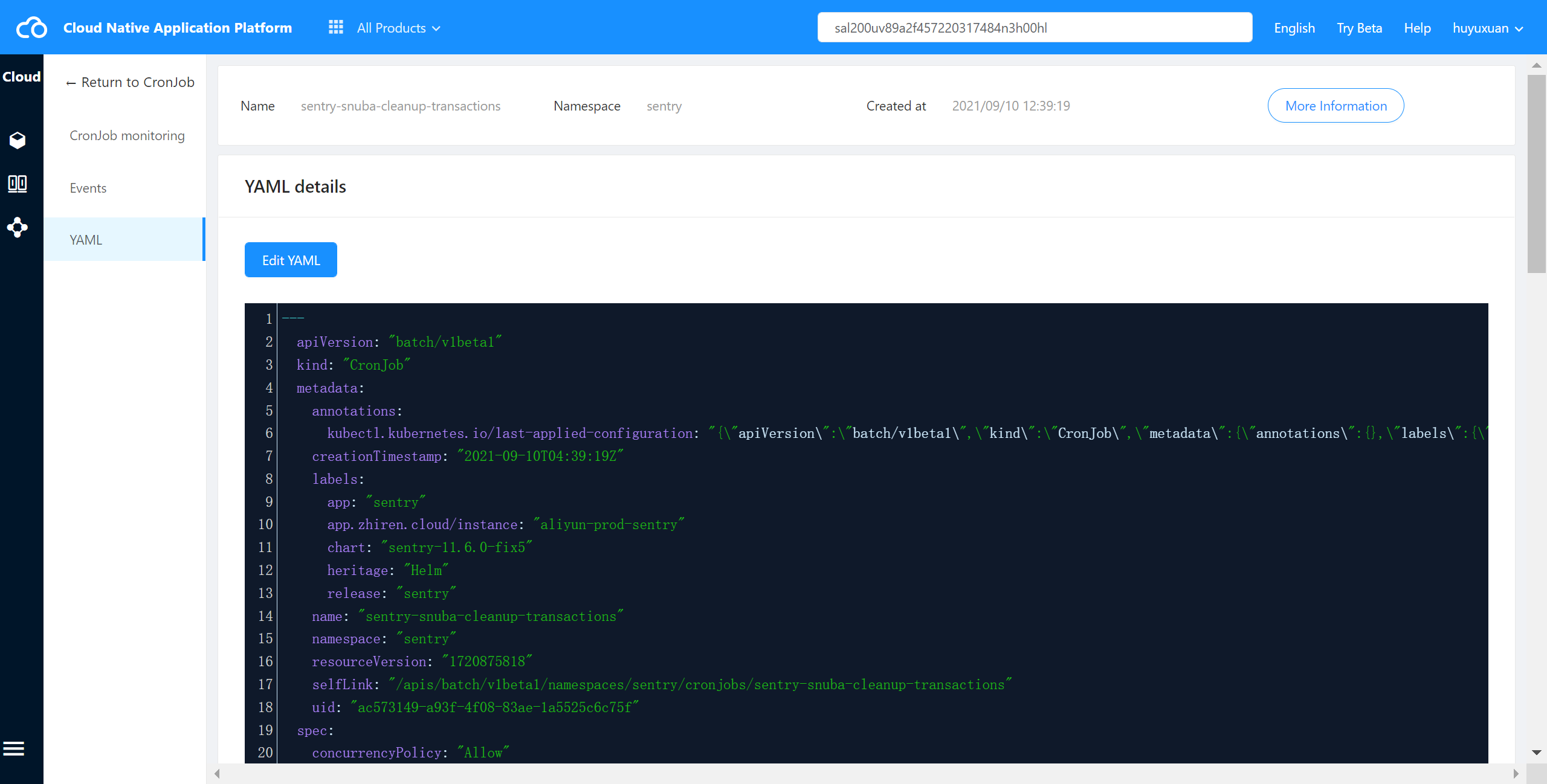

  4. On the Pod management page,click YAML on the left navigation to enter YAML page,as shown in the following figure:

image_20220730192227_cronjob

Delete CronJob #

The container cloud platform supports deleting CronJob in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Workload under the Container Cloud Platform module

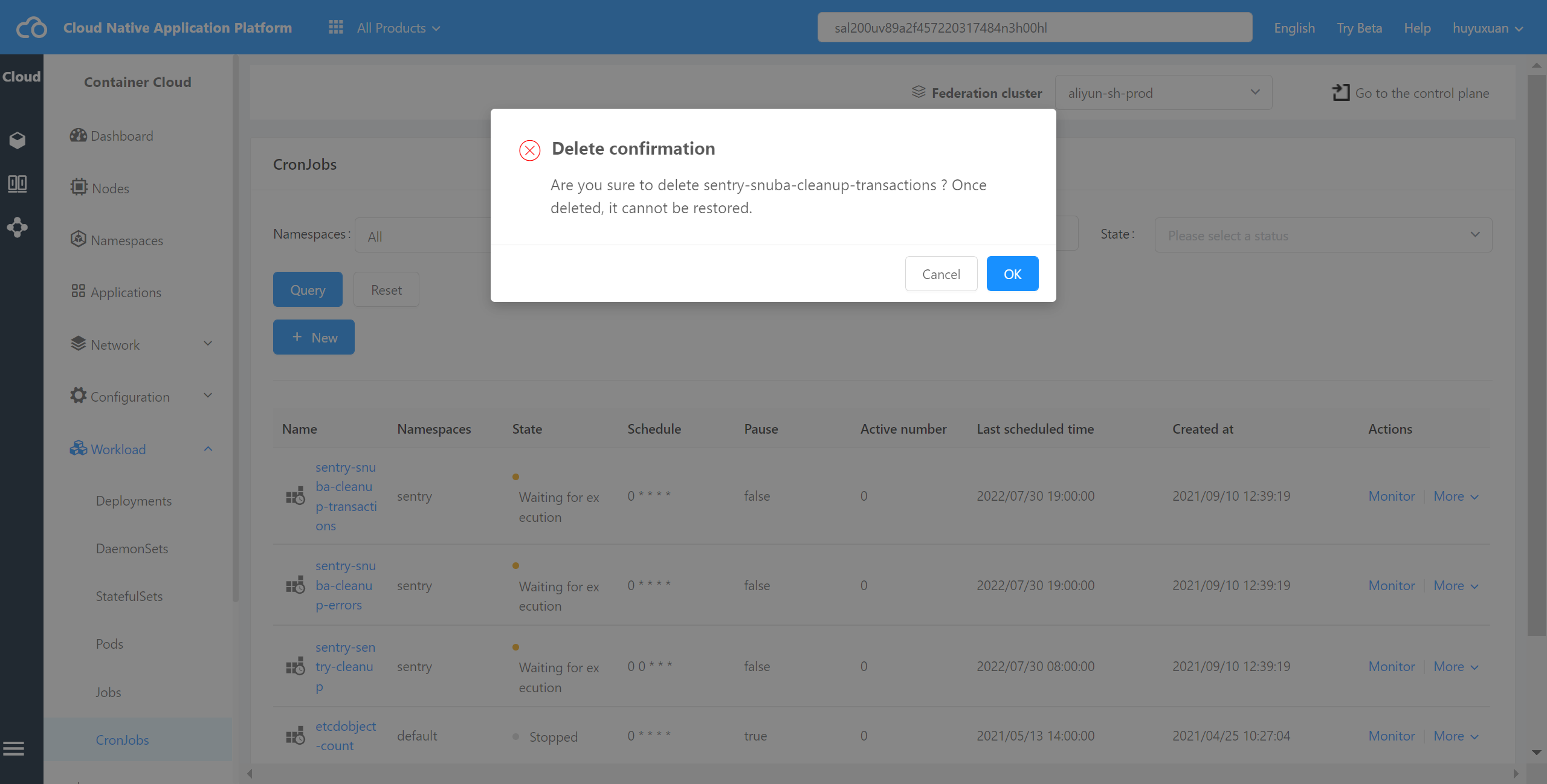

  3. Click select “CronJob"and enter CronJob list page,select the desired CronJob,click Delete,as shown in the following figure:

image_20220730192232_cronjob
