StorageClass

StorageClass #

SC Overview #

SC is a provider of storage resources,and can also be regarded as a back-end storage driver.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Storage under the Container Cloud Platform module

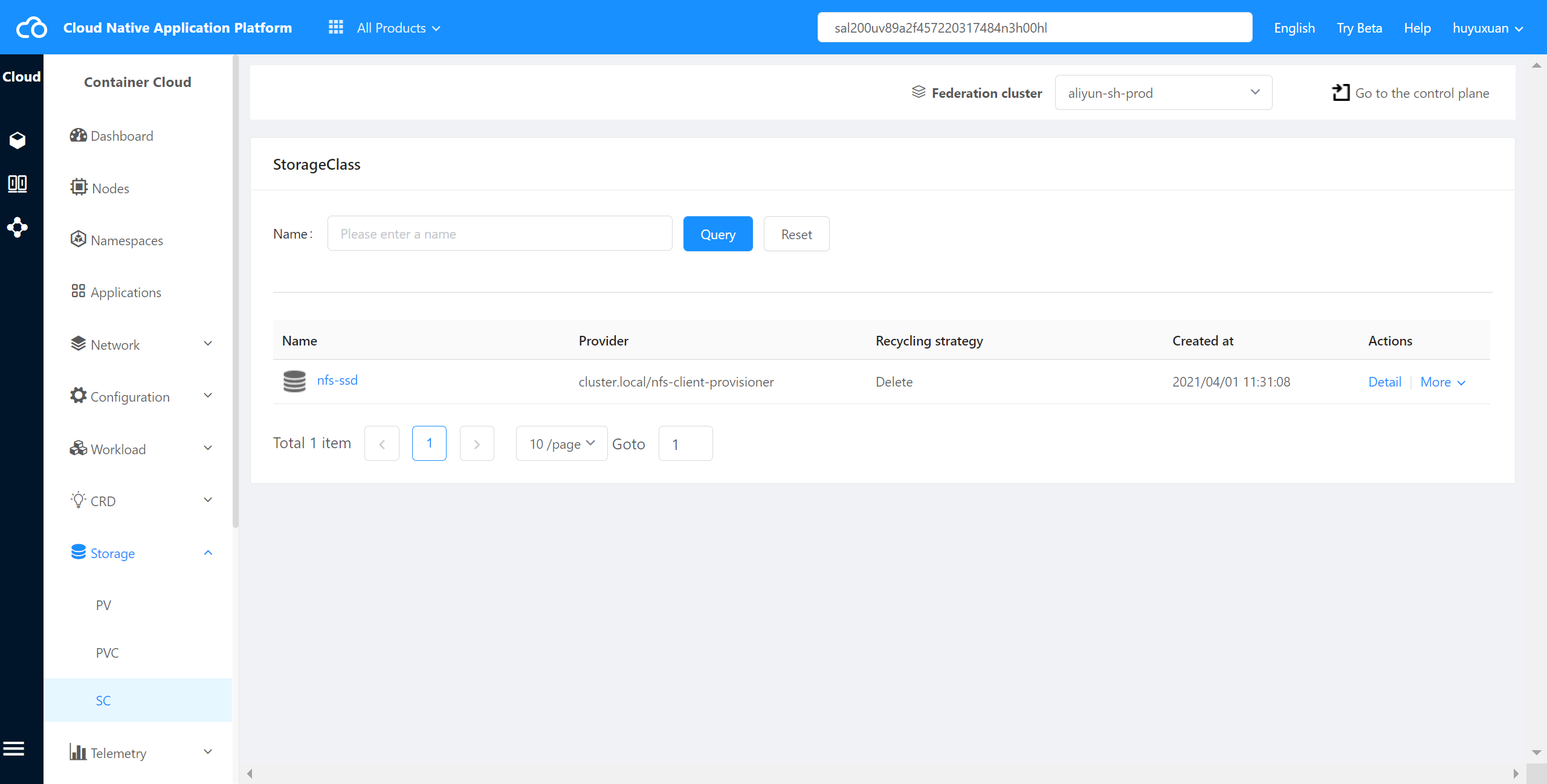

  3. Click “SC” to enter the SC list page,as shown in the following figure:

image_20220730170441_sc

Check SC Details #

The container cloud platform supports viewing SC details in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Storage under the Container Cloud Platform module

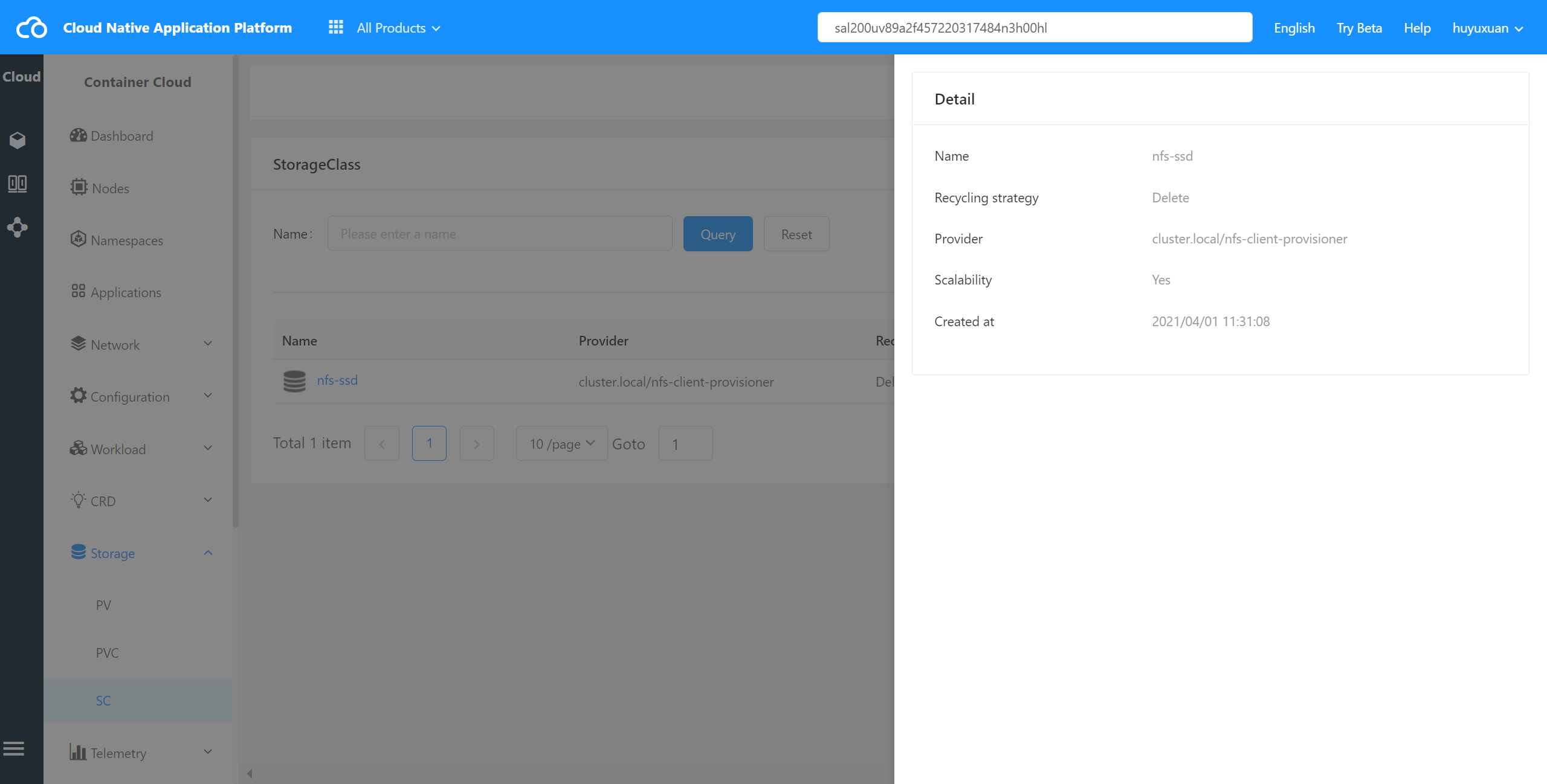

  3. Click select “SC” and enter SC list page,select the desired SC,click Name to go to the details page,as shown in the following figure:

image_20220730170449_sc

Check SC Event #

The container cloud platform supports viewing the events of SC in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Storage under the Container Cloud Platform module

  3. Click select “SC” and enter SC list page,select the desired SC,click the action column View Event to go to the details page

Check SC YAML #

The container cloud platform supports viewing YAML files of SC in cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Storage under the Container Cloud Platform module

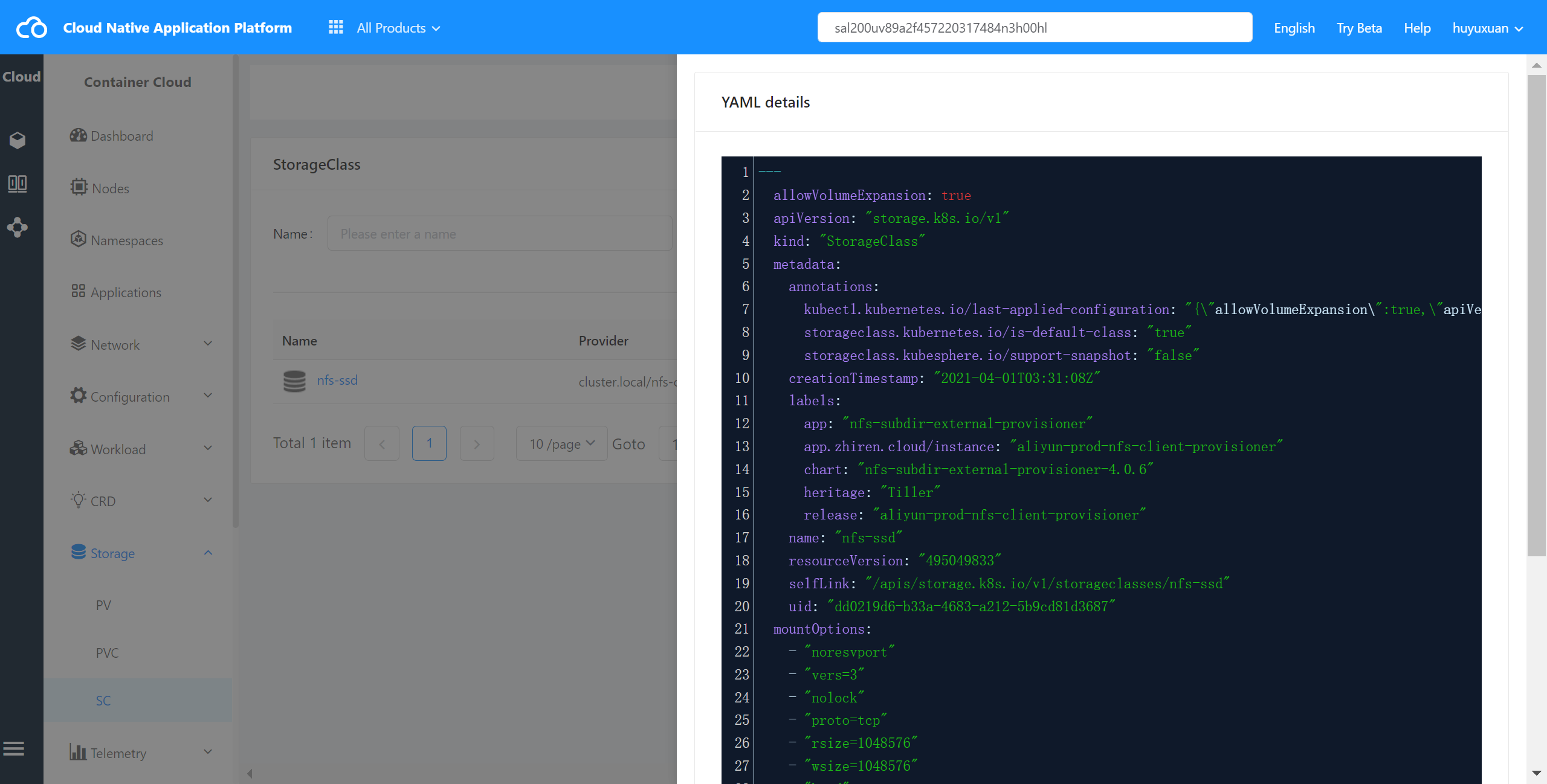

  3. Click select “SC” and enter SC list page,select the desired SC,click View YAML to enter YAML page,as shown in the following figure:

image_20220730170456_sc

Delete SC #

The container cloud platform supports deleting SC in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the Storage under the Container Cloud Platform module

  3. Click select “SC” and enter SC list page,select the desired SC,click Delete
