CloneSet

CloneSet Management #

CloneSet Overview #

CloneSet controller provides the ability to efficiently manage stateless applications.It can benchmark the native Deployment,but CloneSet provides many enhancements.

Check CloneSet List #

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the CRD under the Container Cloud Platform module

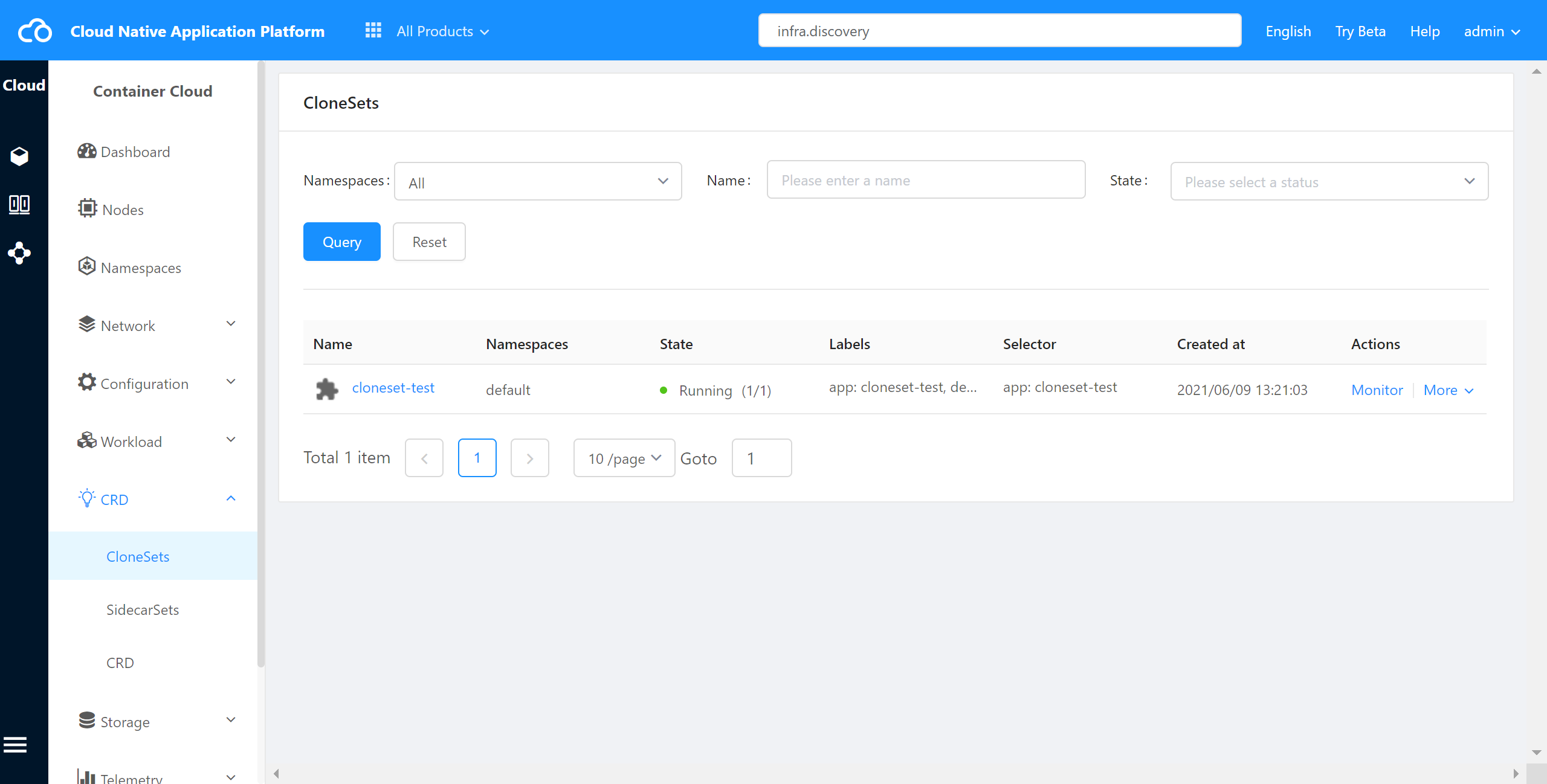

  3. Click “CloneSet” to enter the CloneSet list page,as shown in the following figure:

image_20220801141206_cloneset

Check CloneSet Monitor #

The container cloud platform supports viewing the monitoring of CloneSet in the cluster,including cpu usage, memory usage, network outflow rate and network inflow rate.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the CRD under the Container Cloud Platform module

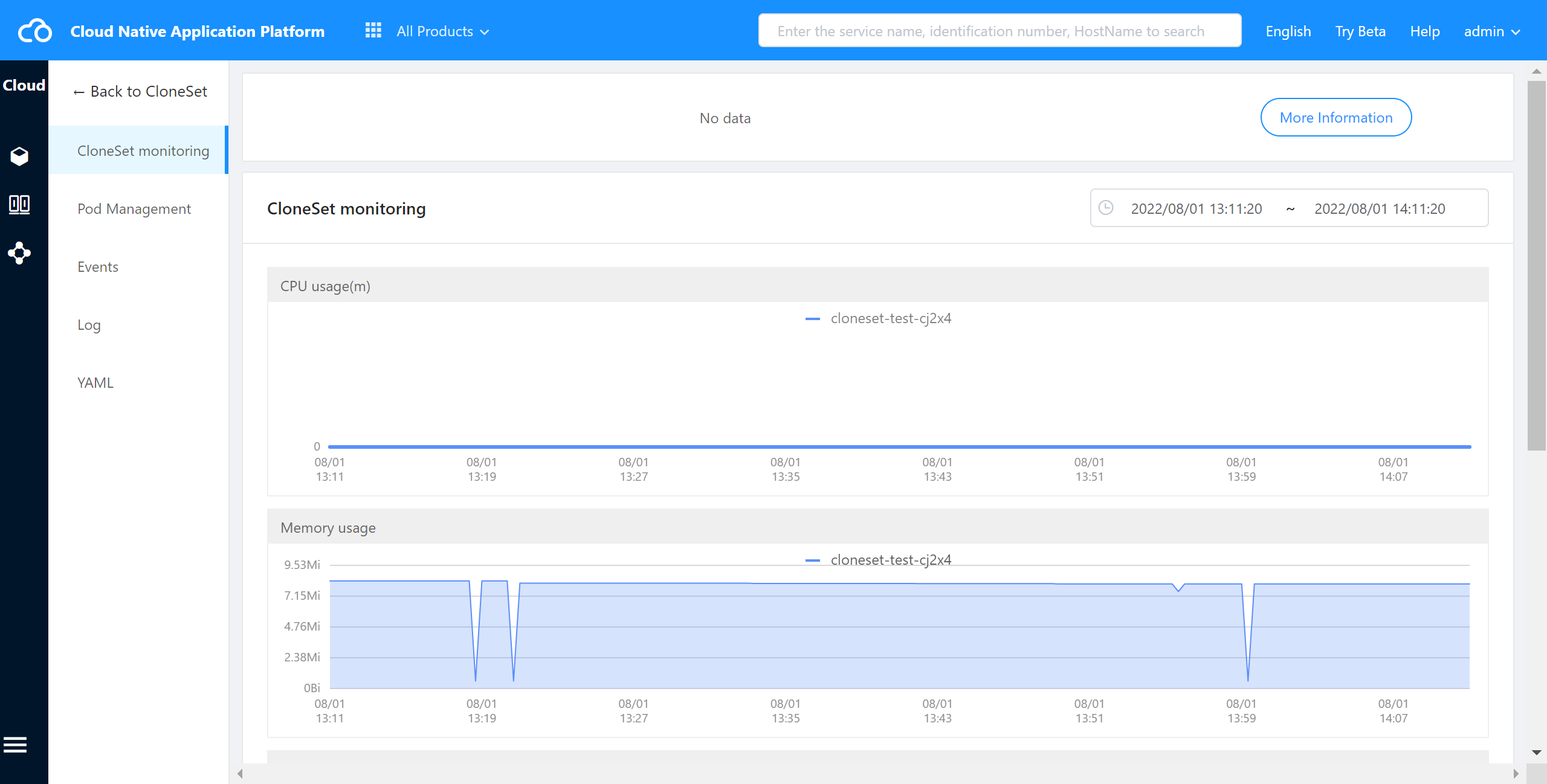

  3. Click “CloneSet” to enter the CloneSet list page,select the desired CloneSet and click Monitor to enter the monitoring page,as shown in the following figure:

image_20220801141223_cloneset

Check CloneSet Event #

The container cloud platform supports viewing the events of CloneSet in the cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the CRD under the Container Cloud Platform module

  3. Click select “CloneSet"and enter CloneSet list page,select the desired CloneSet,click Name to go to the pod management page.

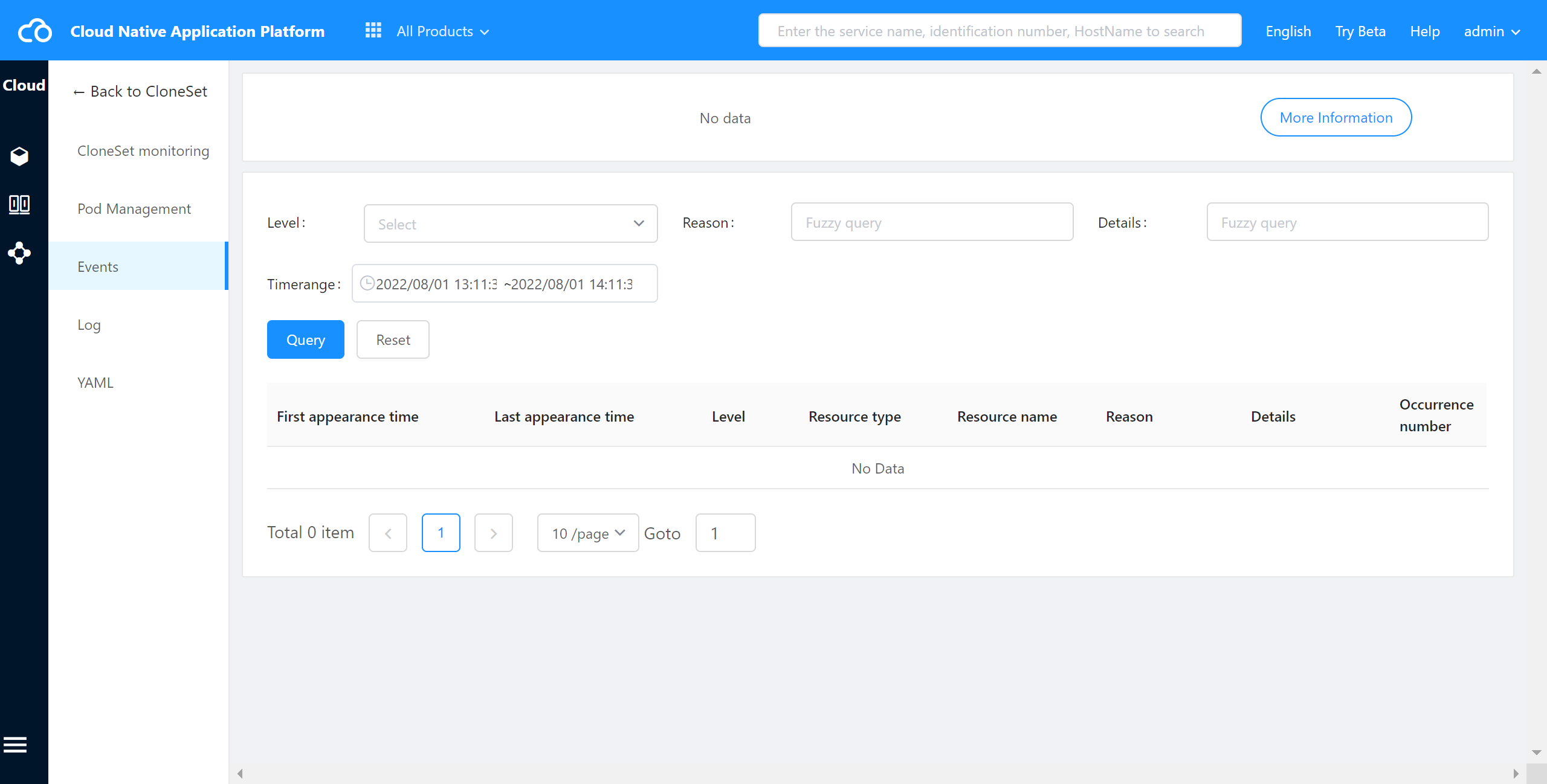

  4. On the Pod management page,click “events” in the left navigation to enter the event page,as shown in the following figure:

image_20220801141235_cloneset

Check CloneSet YAML #

The container cloud platform supports viewing YAML files of CloneSet in cluster.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the CRD under the Container Cloud Platform module

  3. Click select “CloneSet"and enter CloneSet list page,select the desired CloneSet,click Name to go to the pod management page.

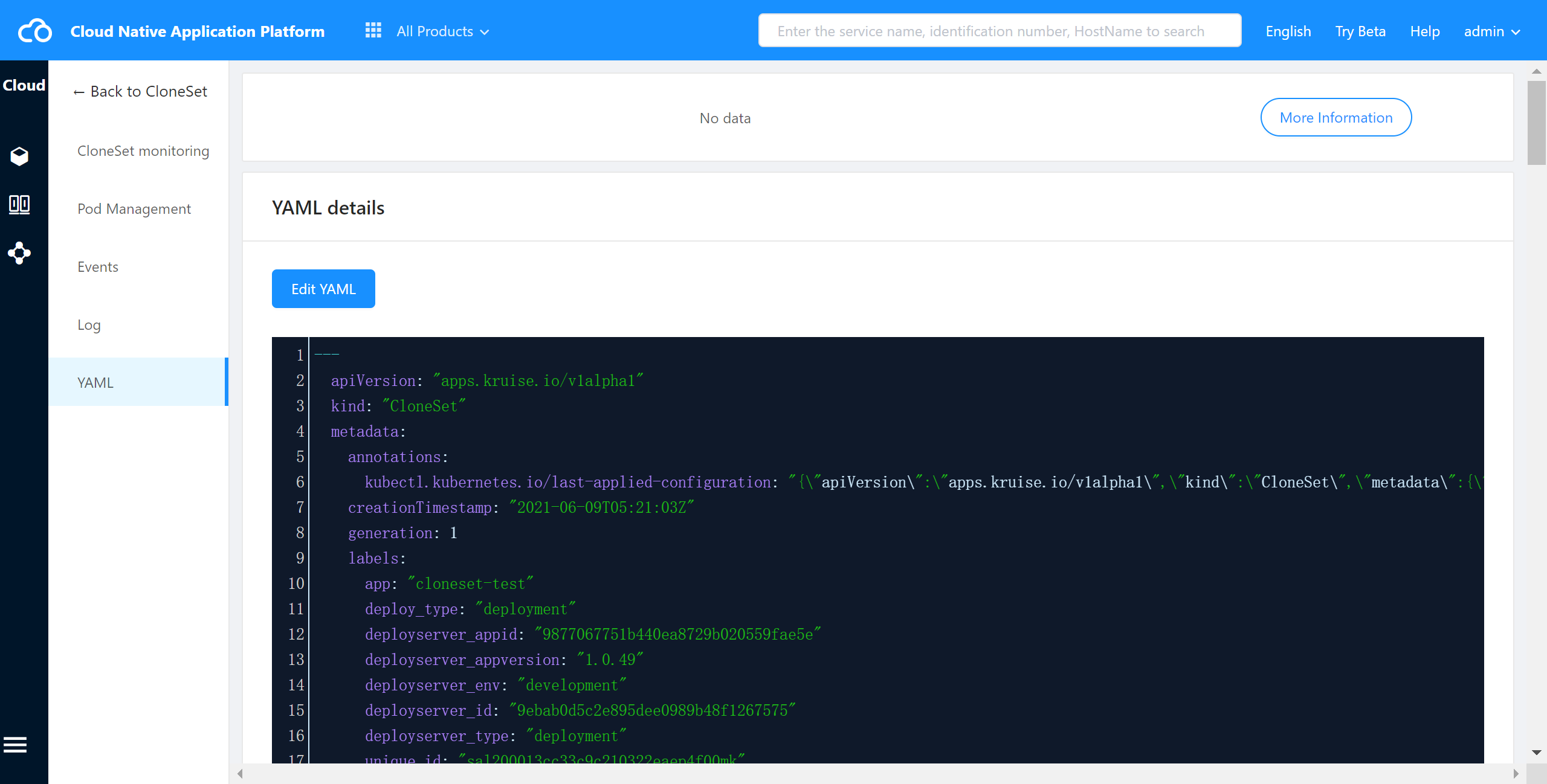

  4. On the Pod management page,click YAML on the left navigation to enter YAML page,as shown in the following figure:

image_20220801141242_cloneset

Delete CloneSet #

The container cloud platform supports deleting CloneSet in the cluster,and other resources in the cluster associated with this resource,such as Service and ConfigMap,will be displayed when deleting.

Operating steps:

  1. Log in the MSP Platform

  2. In the MSP Platform “All Products” navigation bar,click the CRD under the Container Cloud Platform module

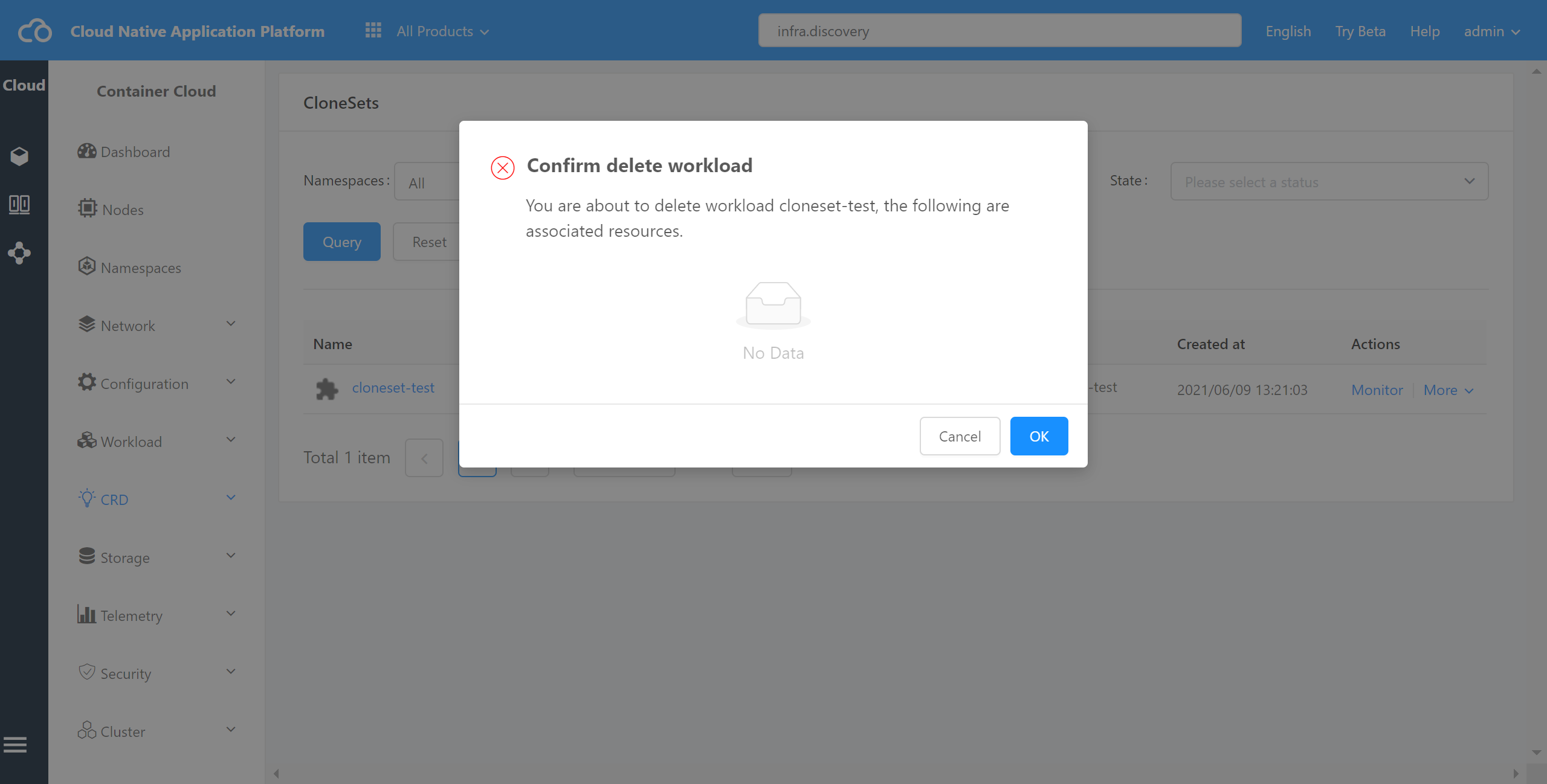

  3. Click select “CloneSet"and enter CloneSet list page,select the desired CloneSet,click Delete,as shown in the following figure:

image_20220801141248_cloneset
